Servo Press
High-performance servo motors provide highly-flexible, high-performance press movements. Numerous judgment functions improve press-in reliability.
Features

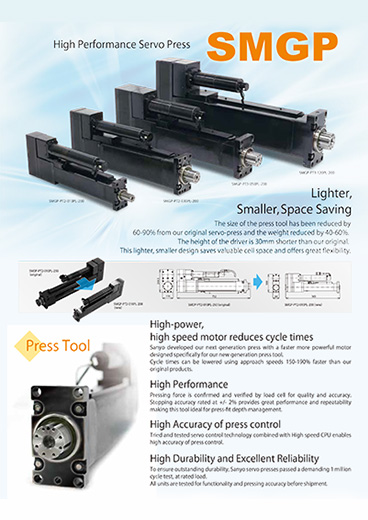

PressTool
- High Performance
- Pressing force is confirmed and verified by load cell for quality and accuracy. Stopping accuracy rated at ±2%（3σ/maximum load）provides great performance and repeatability making this tool ideal for managing press-fit depth.
- High Accuracy Software Servo Control
- Tried and tested servo control technology combined with a high-speed CPU enables high accuracy press control for fine adjustment of pressurization and press-fit distance.
- High Durability and Excellent Reliability
- To ensure outstanding durability, Sanyo servo presses pass a demanding 1 million cycle test at rated load. All units are tested for functionality and pressing accuracy before shipment through our traceable inspection and management system.

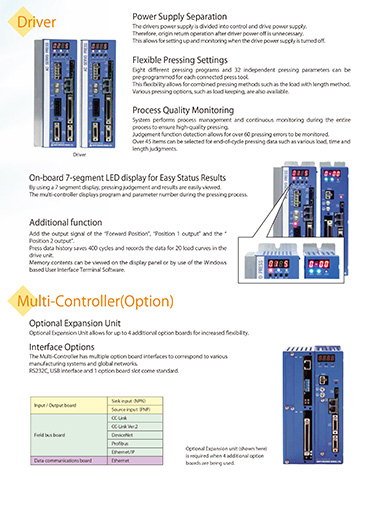

Driver
- Flexible Press Program Settings
-
Eight different pressing programs and 32 independent pressing parameters can be pre-programmed for each connected press tool.
This flexibility allows for combined pressing methods such as the load method and distance method.
Various pressing options, such as load retention, are also available.
Multi-ControllerOption
- Interface Options
- The Multi-Controller has multiple option board interfaces, such as I/O boards and field bus boards, to support various manufacturing systems and field network.
- Extensive Abnormality Assessment Function
- Monitoring and control based on over 45 pressing data items and over 60 pressing error items makes high-quality pressing possible.
Peripheral Equipment

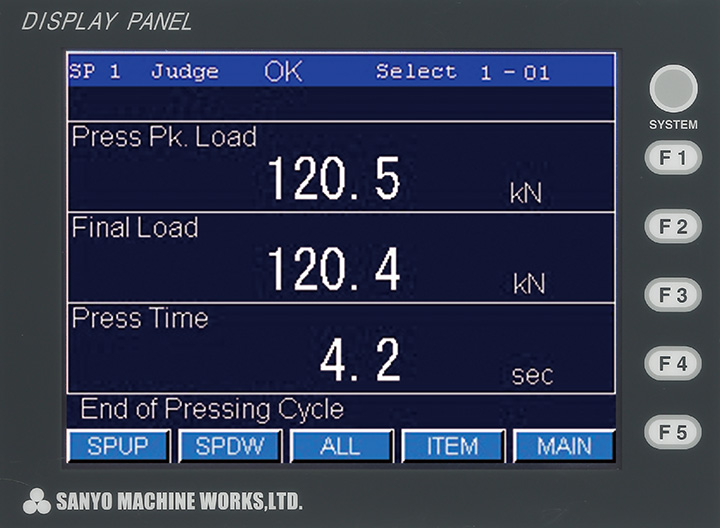

Display Panel
In addition to displaying Servo Press functions, the user can configure the screen to display for PLC operations.
(Screen configuration software is required)
- There are multiple display languages; Japanese and English.
- PLC is able to accept pressing data from this unit.
- With the use of a high-speed CPU and highly efficient depiction LSI,
information is displayed at real time.
Servo Press Operation

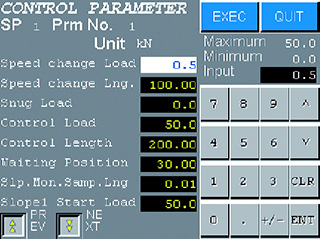

- Pressing setting (Programs & Parameters)
- Type M/S switching

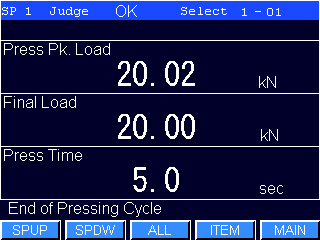

- Data display

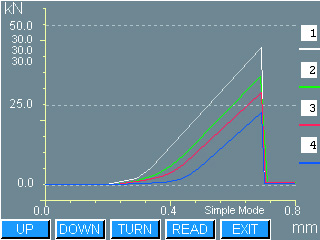

- Load curve monitoring

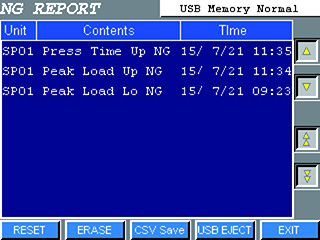

- NG and pressing reports
- USB port for saving settings and NG reports
- Maintenance mode for diagnostics
- Manual operation mode
- Back-Up settings to memory
- Password protection option
- Key lock protection option
User Interface Terminal Software
- System configuration (programming)
- Pressing data acquisition
- Load curve acquisition and display
- System maintenance
- Data acquisition and exportation
- Communicate with a PC via RS232C Serial Communications, USB,
Ethernet and/or optional high speed ARCNET unit.
