SHBN Wireless
Nutrunner
SHBN Wireless Nutrunner

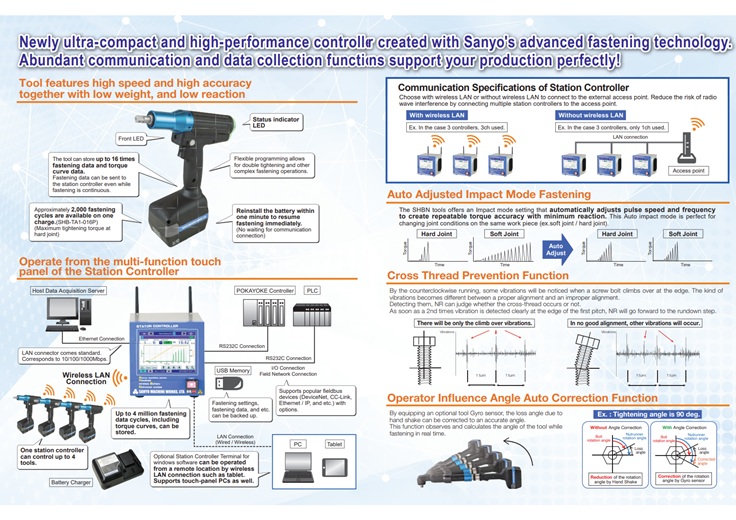

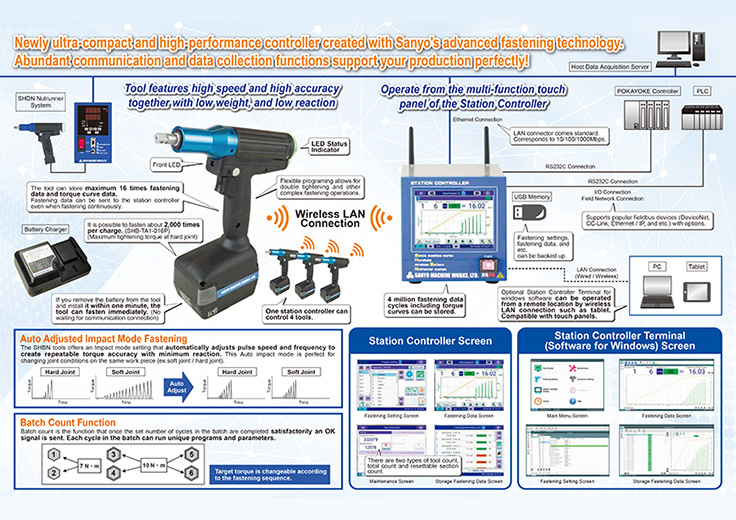

High quality, low reaction wireless nutrunner with ergonomic "Impact mode". Newly ultra-compact and high-performance controller created with Sanyo's advanced fastening technology. Abundant communication and data collection functions support your production perfecty!
Features
High-speed, Lightweight, High-accuracy Tool
Equipped with an "impact mode" that reduces torque reaction during fastening, the tool reduces operator strain while maintaining high-accuracy fastening even at high torques. The tool can store up to 16 times fastening data and torque curve data. Fastening data can be sent to the station controller even while fastening is continuous. Flexible programming allows for double tightening and other complex fastening operations.
Impact Mode, Auto Adjusted Impact Mode Fastening,
Batch Count Function, Cross Thread Prevention Function,
Operator Influence Angle Auto Correction Function
The SHBN wireless nutrunner has similar functions as the SHDN handheld nutrunner, including Impact mode, Auto Adjusted Impact mode fastening, Batch count function, Cross thread prevention function, and Operator influence angle auto correction function.
Stress-free Specifications
Impact mode reduces torque reaction, helping to reduce operator strain and repetitive motion injuries. Approximately 2,000 fastening cycles are available on one charge (SHB-TA1-016P). (Maximum tightening torque at hard joint.) Even when batteries need to be replaced, as long as installation/removal takes less than one minute, work can be resumed immediately without waiting for communication connection, boosting productivity. The "OK/FAIL" LED indicator on the end of the motor covers the entire surface so that workers can tell at a glance whether it is operating correctly.
Component Equipment
Station Controller
- One station controller can control up to 4 tools.

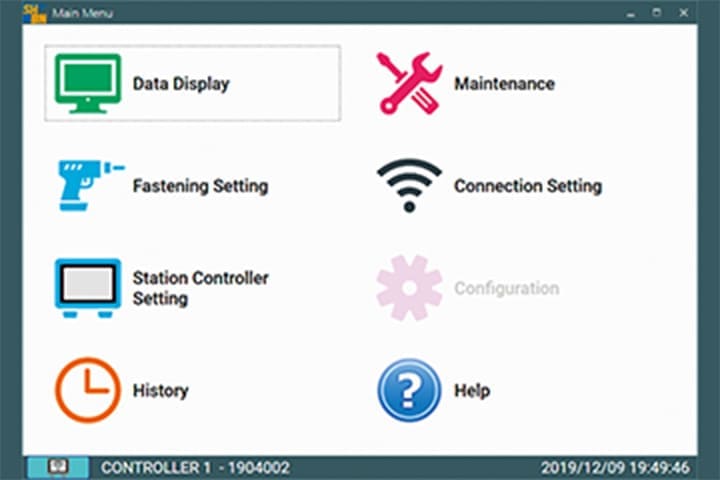

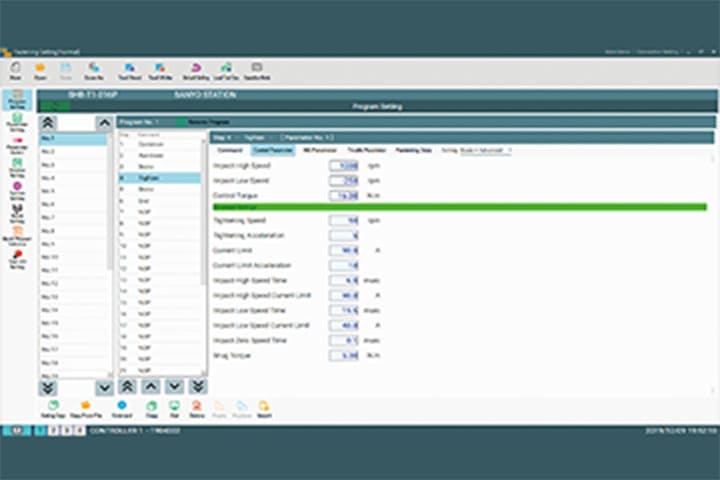

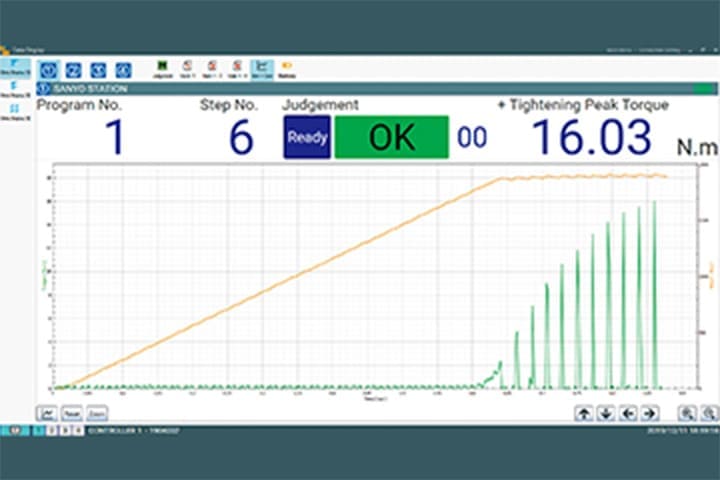

- All operations, such as displaying fastening data, viewing stored history data, and editing fastening setting, can be performed from the touch panel LCD screeen.

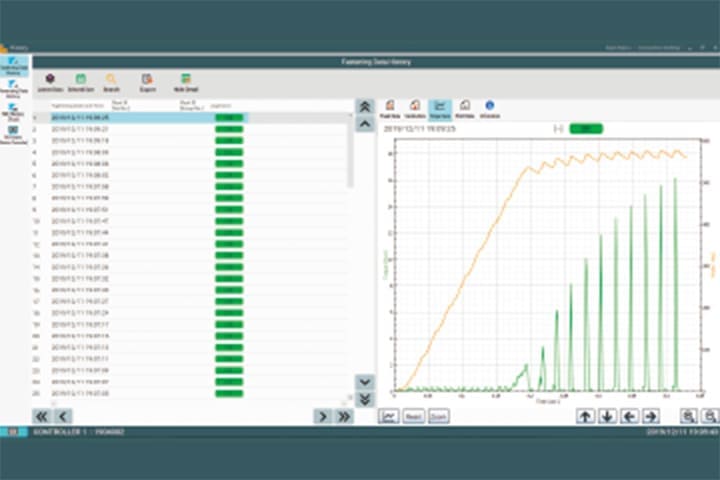

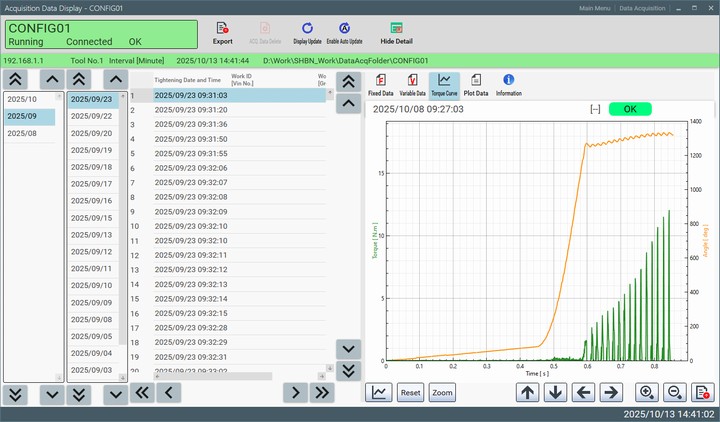

- Up to 4 million fastening data cycles, including torque curves, can be stored.
- Fastening settings, fastening data, and etc. can be backed up to a USB memory stick.
- LAN connector comes standard. Corresponds to 10/100/1000Mbps.
- I/O connection to PLC is available. Supports popular fieldbus devices (DeviceNet, CC-Link, Ethernet / IP, and etc.) with options.
Station Controller Terminal(SCT)

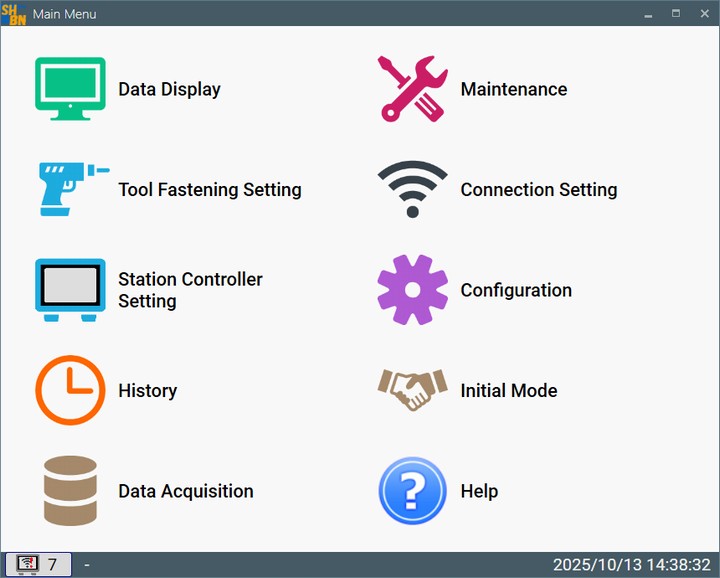

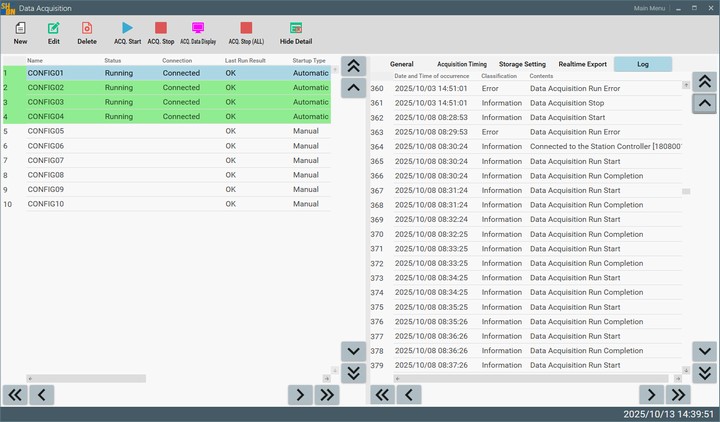

Optional Station Controller Terminal for windows software can be operated from a remote location by wireless LAN connection such as tablet.Compatible with touch panels.
Communication Specifications of Station Controller

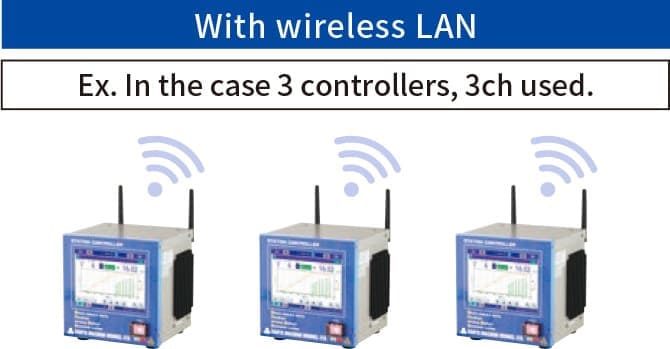

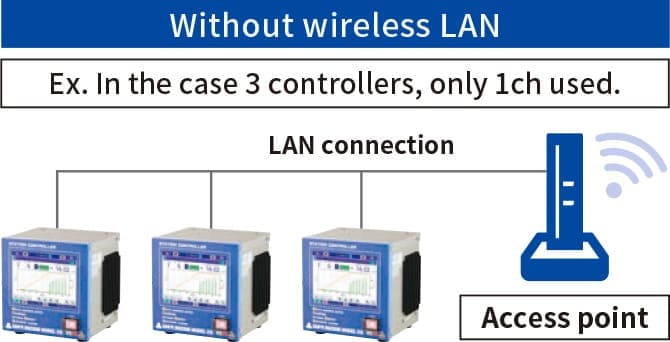

Choose with wireless LAN or without wireless LAN to connect to the external access point. Reduce the risk of radio wave interference by connecting multiple station controllers to the access point.
Specifications
Tool
| Item | Specification | ||
|---|---|---|---|
| Model | SHB-TA1-016P | SHB-TA1-032P | SHB-TB1-090A |
| Maximum Torque | 16N・m (Impact Mode) |
32N・m (Impact Mode) |
90N・m (Impact Mode) |
| Free Speed | 2000rpm | 1760rpm | 557rpm |
| Wireless Communication |
Wireless LAN 2.4GHz / 5GHz | ||
| Weight | 1.2kg (without battery) |
1.4kg (without battery) |
3.4kg (without battery) |
Battery
| Item | Specification | |
|---|---|---|
| Model | SHB-BT-25 | |
| Type | Lithium Ion | |
| Voltage | 25.2V | |
| Capacity | 2.0Ah | |
| Weight | 540g | |
Station Controller
| Item | Specification | |
|---|---|---|
| Model | SHB-SC | |
| Interface |
|
|
| Input Power | AC100~240V 50/60Hz (AC adapter) | |
| Maximum Power Consumption | 360W | |
| Weight | 1.3kg | |
Battery Charger
| Item | Specification | |
|---|---|---|
| Model | SHB-BCA | |
| Charge Time | Over 80% in about 60 minutes | |
| Protection Time | Protection over charging | |
| Display Function | LED display (3 colors / 6 level) | |
| Input Power | AC100~240V 50/60Hz | |
| Weight | 580g | |
Dimensions
Pistol Tool

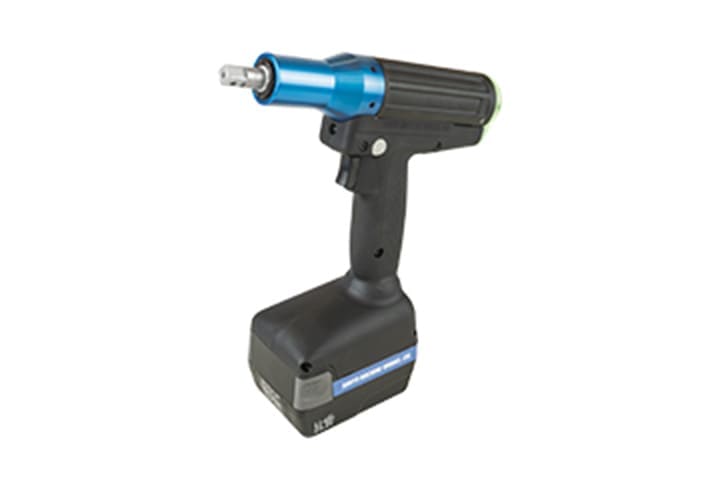

Pistol Tool (SHB-TA1-***P)
*The length depends on output axis.
(The upper table shows the size of the square type.)
| Model | L(mm)※ |
|---|---|
| 016P | 228 |
| 032P | 244.5 |
Angle Tool

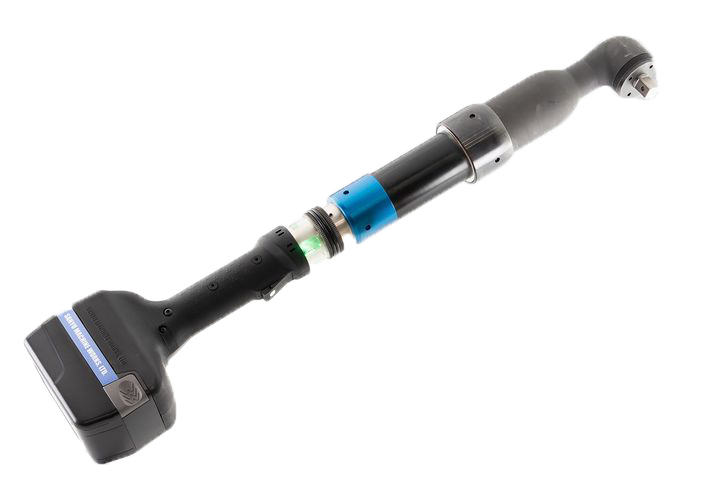

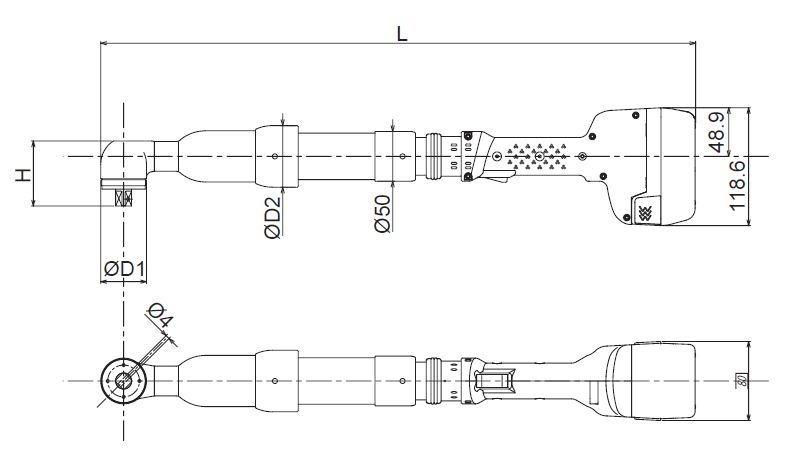

Angle Tool (SHB-TB1-***A)
| Model | Size(mm) | Output Axis size(mm) |
|||
|---|---|---|---|---|---|
| D1 | D2 | H | L | ||
| 090A | 46 | 62 | 65.5 | 599 | 12.7 |
Station Controller(SHB-SC)
*The above-mentioned specification may be changed without prior notice.
